Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

  • 1
  • 2
  • 3

Brand Name : Phidix

Model Number : M12139

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Warranty : 1 year

Drawtube : Trinocular

Theory : Biological Microscope

Lead-time : 15-20 Work Days

Magnification : 40X-1000X

Eyepiece : WF10X/20mm

Nosepiece : 4-Position

Objective : 4X, 10X, 40X, 100X

Stage : Mechanical Stage

Focusing : Coaxial coarse and fine focusing system

Illumination : 3W LED Lamp

Contact Now

40X-1000X Trinocular Biological Microscope Integrated Dark Field Polarizing Fluorescence Phase Contrast

what is the difference between binocular and trinocular microscopes

M12139 40X-1000X Trinocular Biological Microscope Integrated Dark Field Polarizing Fluorescence Phase Contrast. This series microscope integrated the frequently-used functions including dark field, polarizing, fluorescence and phase contrast. It will be very convenient for the observers to change observing type to get an ideal image.

Features:

- Multi-functional, easier to exchange.

- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.

- Easy to move and keeping.

- Low position operation, convenient for long-term using.

Items Description / Value M12139
Eyepiece WF10×／20mm (23.2mm) ●●
Infinity Plan Objectives PLAN 4×／0.10 W.D.=12.10mm ●
PLAN 10×／0.25 W.D.=4.64mm ●
PLAN 20×／0.40(S) W.D.=2.41mm ●
PLAN 40×／0.66(S) W.D.=0.65mm ●
PLAN 100×／1.25(S, Oil) W.D.=0.12mm ●
PLAN 2.5×／0.07 W.D.=8.47mm ○
PLAN 60×／0.80(S) W.D.=0.33mm ○
PLAN 100×／1.15(S, W) W.D.=0.19mm ○

Infinity Plan
Semi Apochromatic Objective

 UPlanFLN 10X/0.30 W.D.=7.68mm ○
UPlanFLN 20X/0.50 W.D.=1.96mm ○
UPlanFLN 40X/0.75 W.D.=0.78mm ○
UPlanFLN 100X /1.30 (Oil) W.D.=0.15mm ○
Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm ●
Seidentopf Trinocular Head

Inclined 30°,Rotatable 360°, Interpupilary
Distance:48mm-75mm
Light Distribution: 100: 0 / 80:20

 ○
Nosepiece Quintuple ●
Mechanical Stage Stage Size: 175mm×145mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs
Two Slide Holder		 ●

Integrated stage

Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

 ○
Condenser Abbe N.A. 1.25 with iris diaphragm. ●
Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. ○

Koehler Illumination

Wide voltage input: 100V～240V
Field diaphragm , center adjustable

 12V/20W Halogen Lamp ○
6V/30W Halogen Lamp ○
3W-LED Illumination ●
Filter Blue ●
Green /Amber /Grey ○
C-mount 1×/0.5×/0.75×C-mount (focus adjustable ○
Fluorescence Attachment Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. ○
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. ○
Phase Contrast Unit

Quintuple hole turret

10× /20× /40× /100× phase contrast objective

 ○

Independent slot

10× /20× /40× /100× phase contrast objective

 ○
Dark Field Unit Dark field condenser (dry),apply to 4×- 40× objective ○
Dark field condenser (wet),apply to 100× objective ○
Polarizing Attachment Analyzer / Polarizer ○

Note: ● means current configuration, ○ means optional

Packing Size: 542mm×265mm×355mm, Gross Weight: 12 kgs, Net Weight: 10 kgs

Biological Microscope Size(mm)
Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece
Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

Fluorescence Microscope Size(mm)
Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

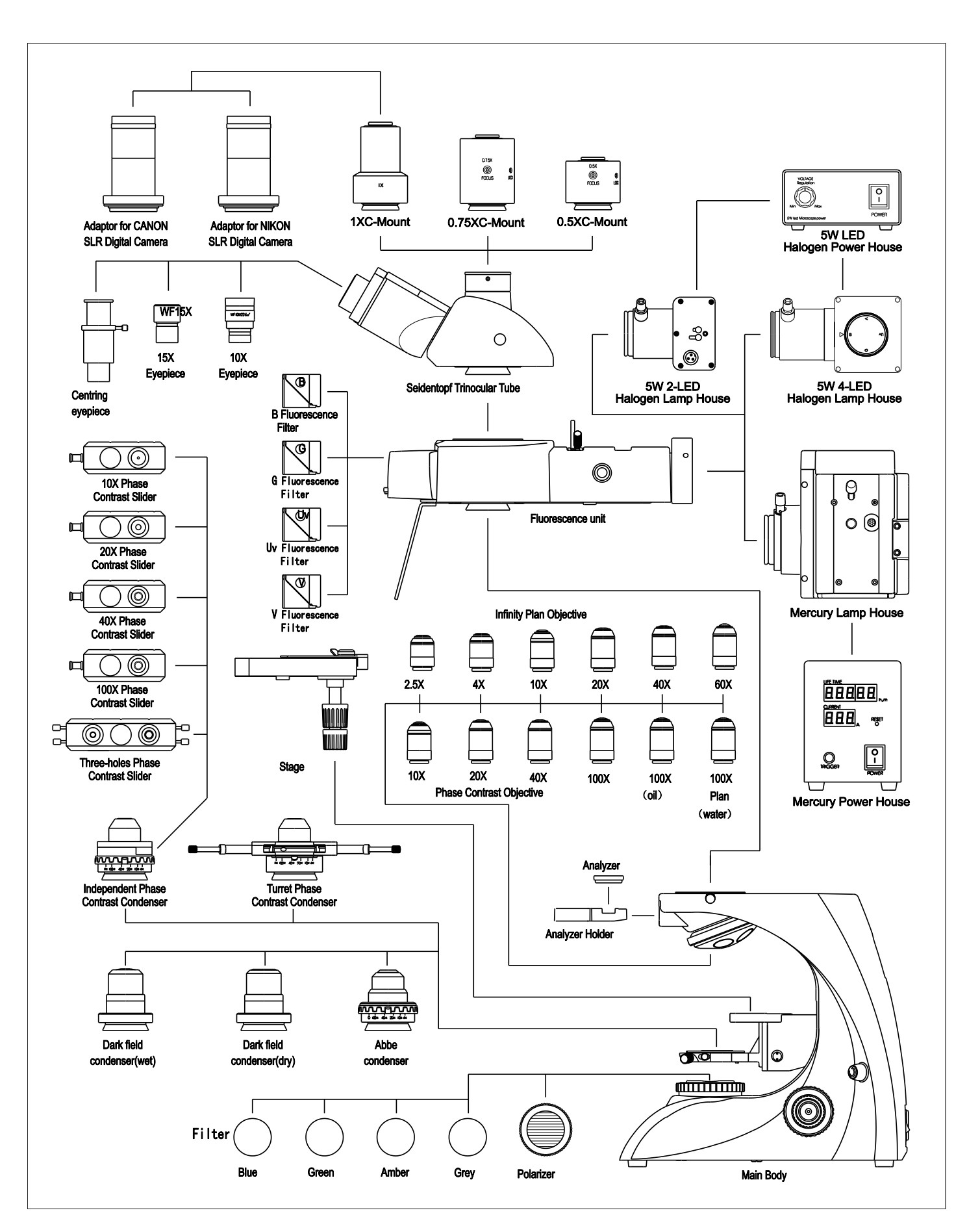

M12139-Series Biological Microscope General Layout Diagram
Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece

Dark Field Polarizing Lab Biological Microscope ODM With 20mm Eyepiece
