Intelligent Zoom 4K Digital Camera HDMI Gigabit Network Interface

Brand Name : Phidix

Model Number : M21138

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 year

Lead-time : 15-20 Work Days

Theory : Industrial Camera

Target : 1/2.8

Output Mode : HDMI, USB2.0x2

Frame Rate : 30FPS

Resolution : 3840 x 2160

Contact Now

8M Large-field Intelligent Zoom 4K Digital Camera 30FPS with Measurement System

M21138 8M Large-field Intelligent Zoom 4K Digital Camera 30FPS with Measurement System. This series digital camera is 2021 new large-field intelligent zoom 4K camera, super cost-effective new product, adopt the new upgrade scheme of kernel image, with clear picture, remarkable details of image quality and fast focusing accuracy. 2K4K screen adaptation.

Features:

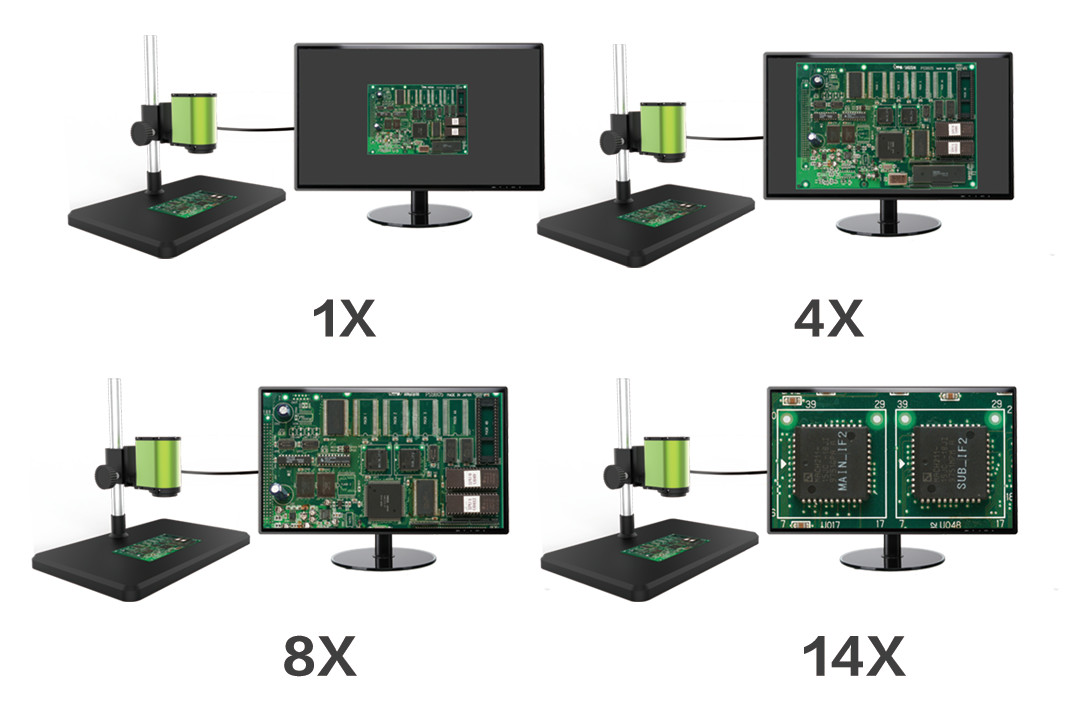

  • 1x-14x optical electric zoom;
  • Auto focus and manual focus modes are optional;
  • Low noise, high sensitivity and true color;
  • Customize the focus area;
  • High-definition shooting, image echo;
  • Adopt high-speed electric focusing lens;
  • Dual USB2.0 can be externally connected with U disk and mouse;
  • Adaptive screen size and current magnification display.
Item Description / Value M21138
Maximum Resolution: 3840 X 2160 ●
Pixel size: 1.45μmx1.45μm ●
Pixel: 8M ●
Target: 1/2.8 ●
Data: 12bit ●
Exposure: Line by line ●
Color Output: Colorful ●
FPS Output: 30FPS ●
Processor: ARM Cortex A53, Dual-Core@Max.1 .4GHz Main Processor ●
Storage: USB flash disk ●
Operation System: Measurement system independently developed based on Linux3.1 ●
Interface: HDMI,USB2.0x2 ●
Power Supply: DC-12V/1A ●
Weight: 431g ●
Working distance: 10cm - ∞ ●
Magnification: 1X-14X ●

Remarks: ● means standard configuration ○ means optional
